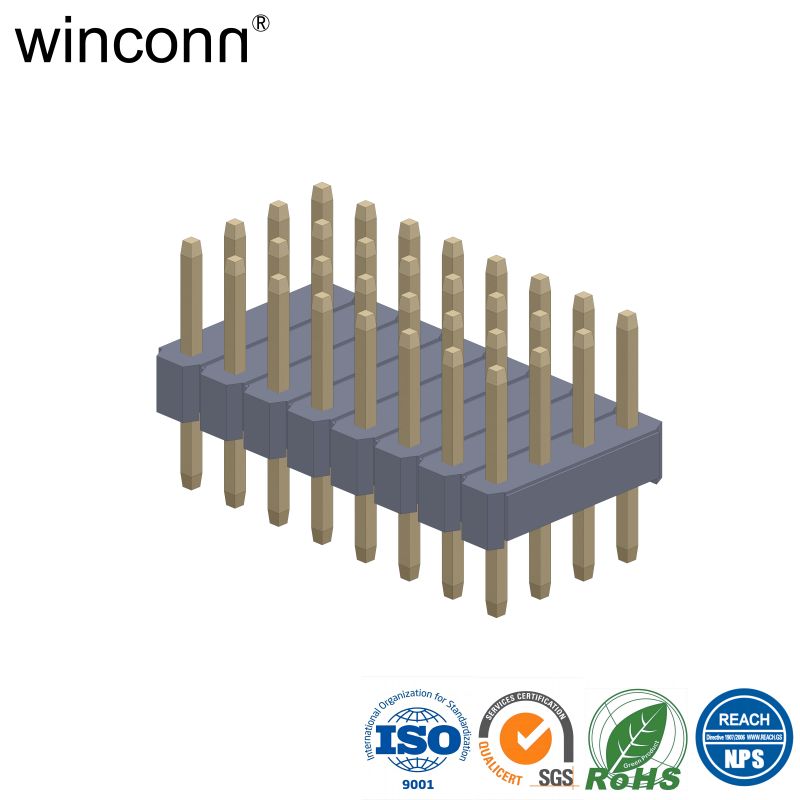

4 row through hole Pin Header Socket

P/N: WPH-7001-4XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WPH-7001-4XX-4GXB-XR

  • winconn

Product Description

Pin Header Pitch=2.00mm Quadruple Row Straight DIP Type H=2.00mm

P/N: WPH-7001-4XX-4GXB-XR

  1. MATERIAL:
      HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
                        UL 94V-0, COLOR:BLACK.
      CONTACT: BRASS.
    2. FINISH:
      CONTACT: AU PLATING OVER NI(50m" MIN.)
    3.ELECTRICAL:
      CONTACT RESISTANCE: 20mΩ Max.
      INSULATION RESISTANCE: 1000MΩ Min.
      DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
      CURRENT RATING: 1.5A
    4.ENVIRONMENTAL:
      OPERATING TEMPERATURE: -25°C TO +85°C

    COMPLIANCE: RoHS or HF


WPH-7001-4XX-4GXB-XR

2D Drawing
