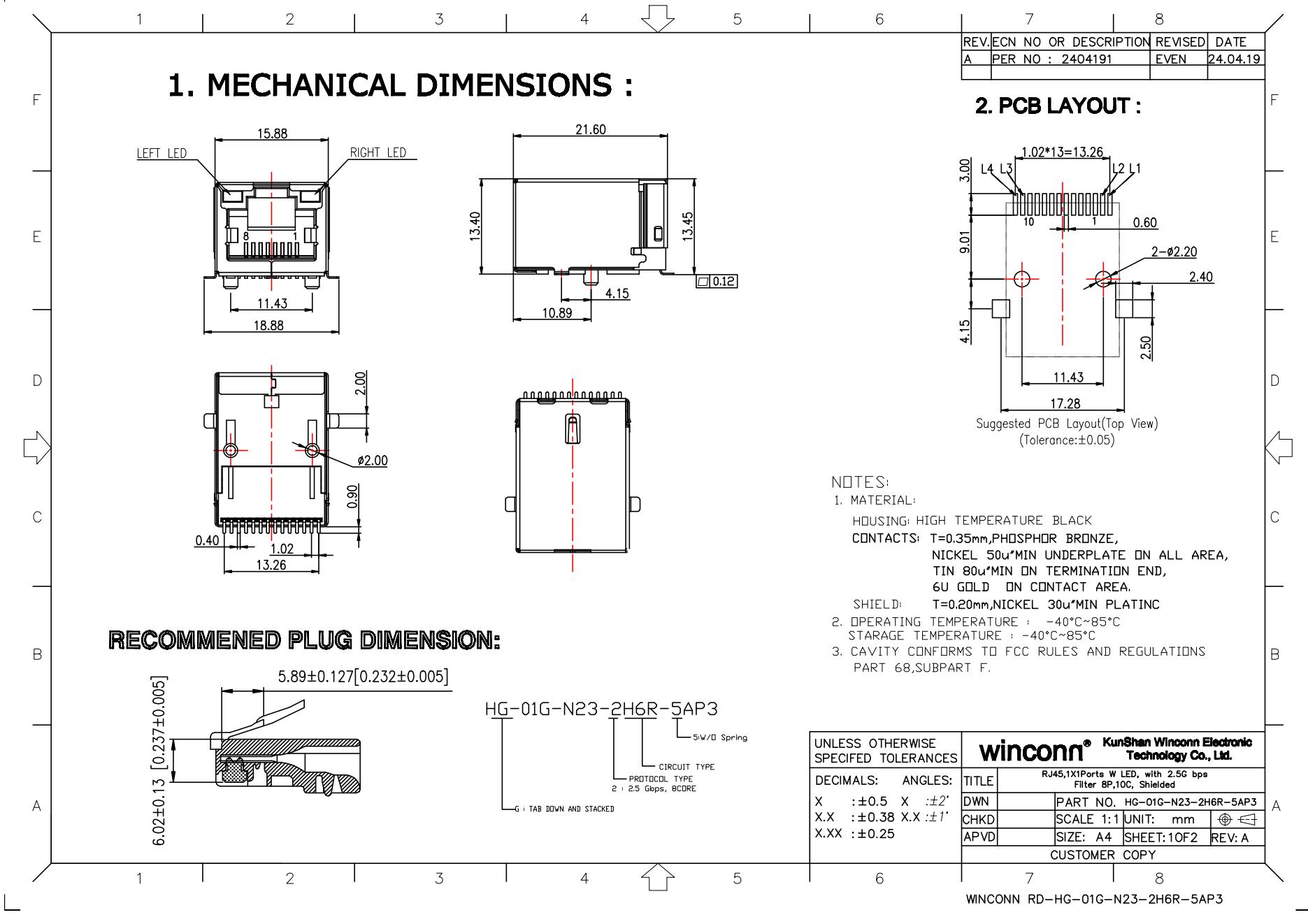

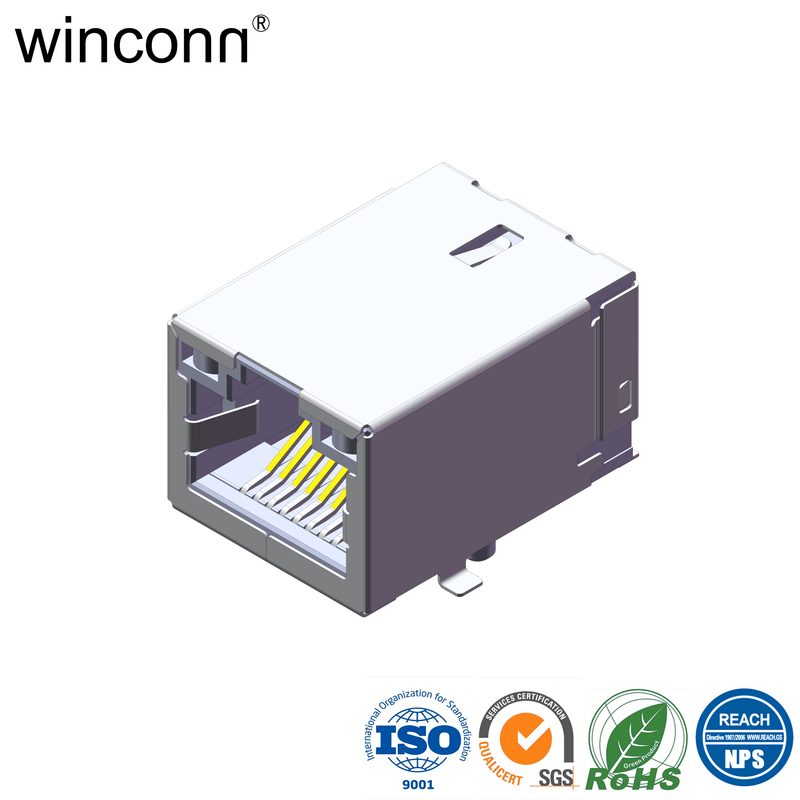

P/N: 10P10C 8P8C with transformer with LED right angle SMT RJ45 connector

NOTES:

1.MATERIAL:

   1.1.  HOUSING: HIGH TEMPERATURE MATERIAL ,BLACK,UL94V-0;

   1.2.  SHELL:  COPPER ALLOY,T=0.20mm;

   1.3.  CONTACT:  COPPER ALLOY,T=0.30mm

2.PLATING:

   2.1. CONTACTS:Gold Plated On Contact Area(SEE P/N),

          50u〞min Tin Plated On Solder Area,

          20u〞min Ni Underplated Overall.

   2.2. SHELL: 30u〞Ni Overall.

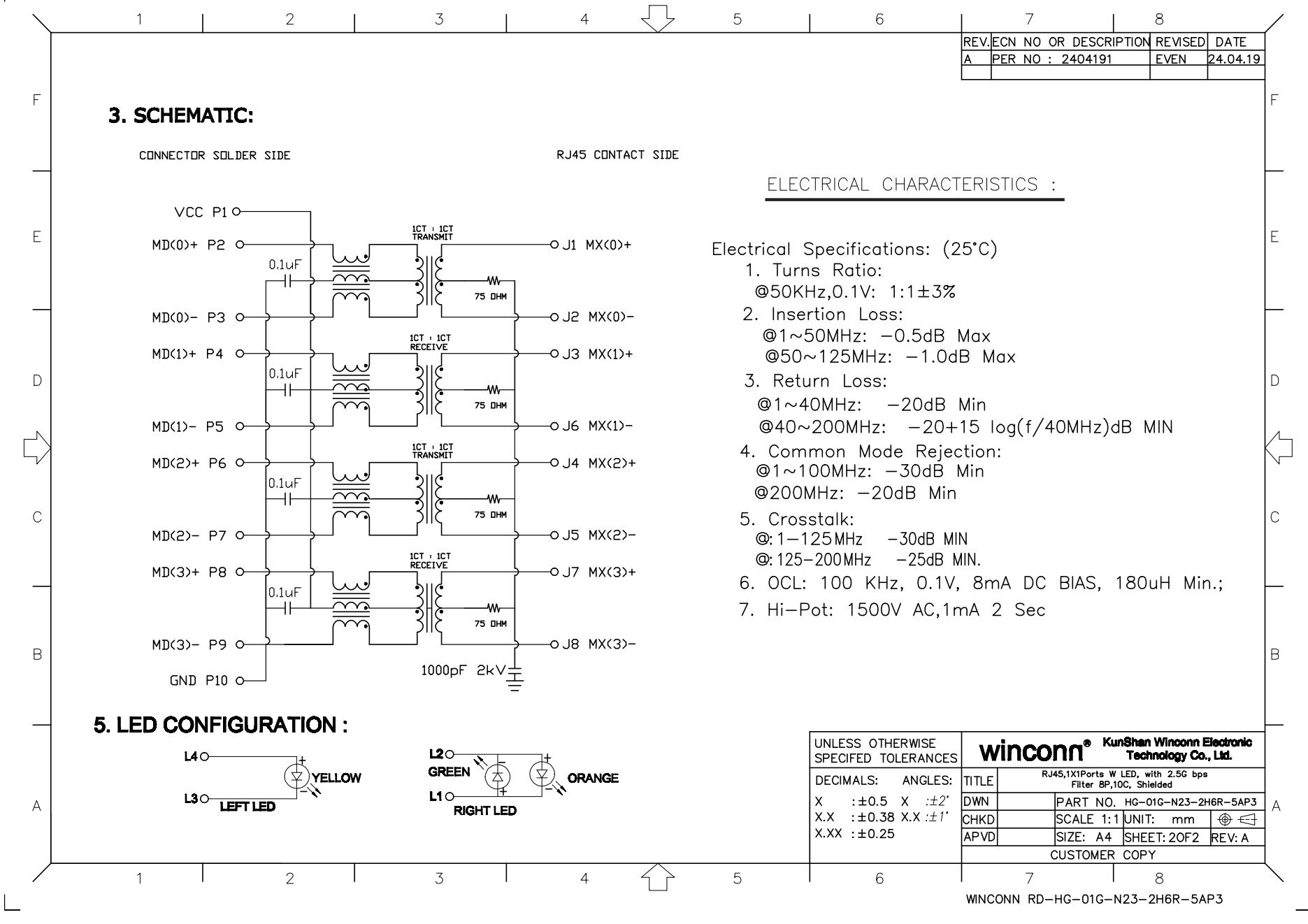

3.ELECTRICAL:

   3.1.  VOLTAGE RATING: 125 VAC RMS

   3.2.  CURRENT RATING: 1.5 AMP

   3.3.  CONTACT RESISTANCE: 30mΩ MAX(Initial) ,50mΩ MAX(Final)

   3.4.  INSULATION RESISTANCE: 500MΩ MIN @500 V DC

   3.5.  DIELECTRIC STRENGTH:1000 VAC/Minutes

4.MECHANICAL:

   4.1. MATING/UNMATING FORCE: 2.2Kgf MAX

   4.2. OPERATING LIFE: 750 CYCLES MIN

5.ENVIRONMENTAL:

   5.1. STORAGE: -40°C ~+85°C  RELATIVE HUMIDITY <70%

   5.2. OPERATION: -40°C ~+85°C
