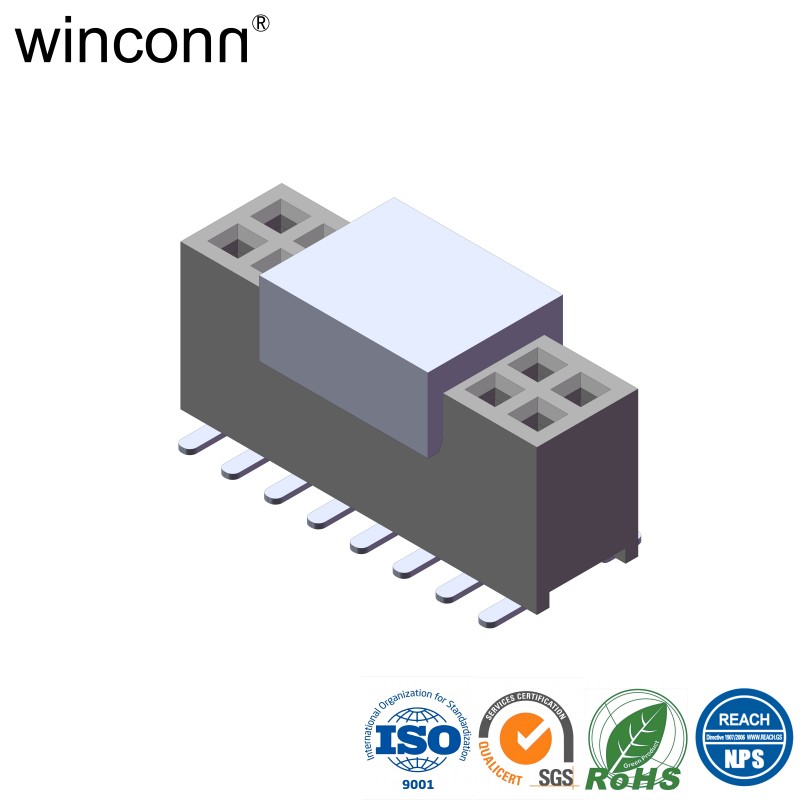

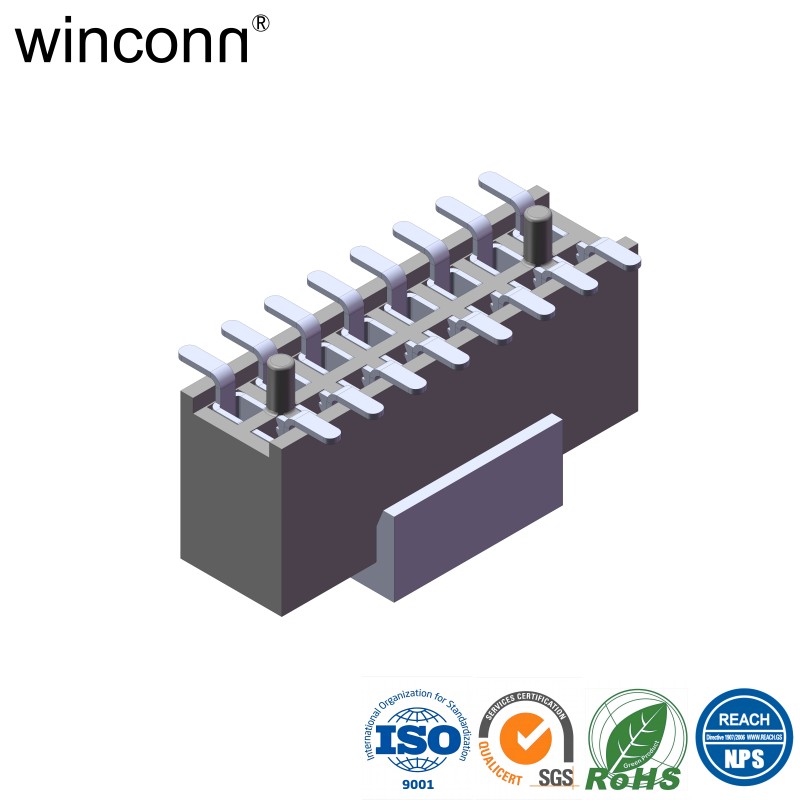

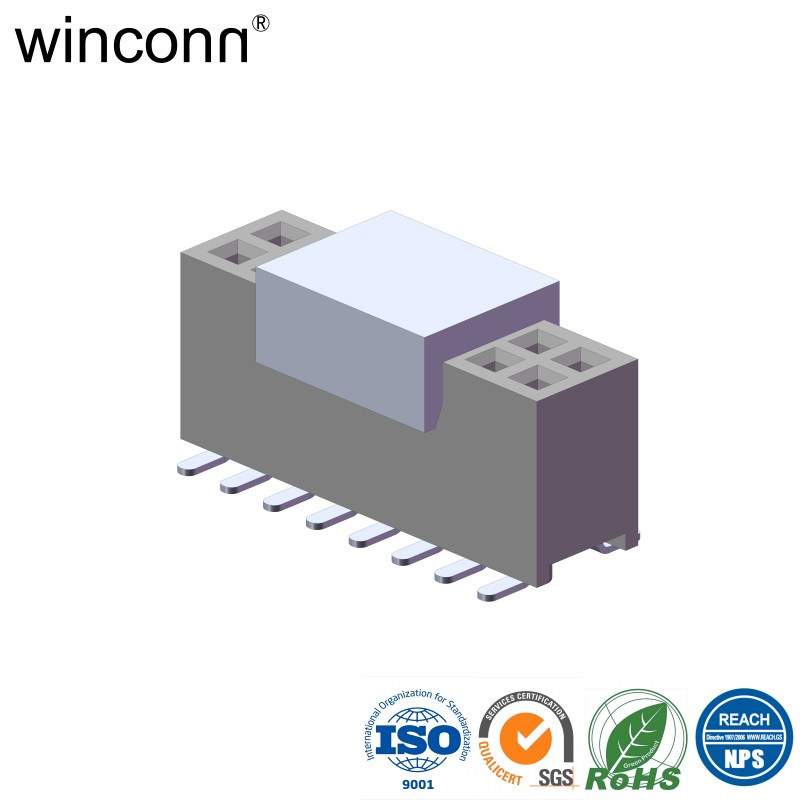

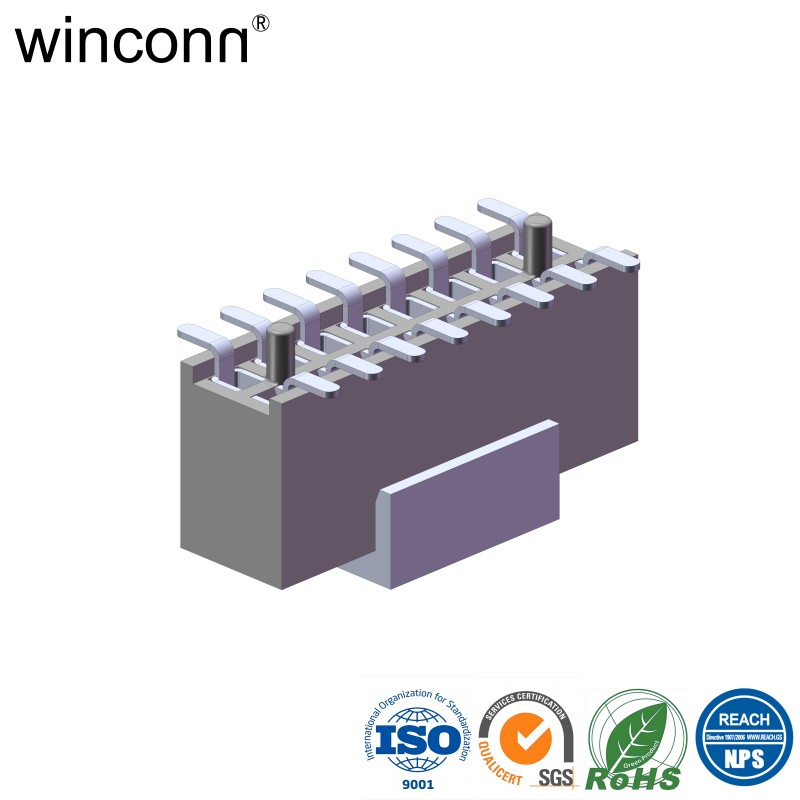

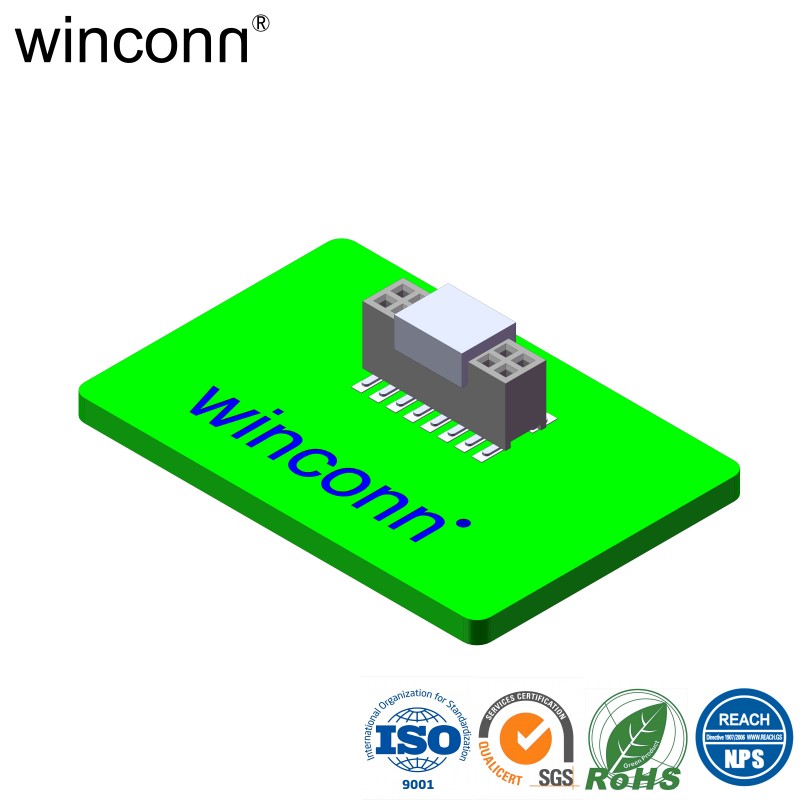

1.27mm with post vertical SMT/SMD Female Header connector for Home Security

P/N: WFH-6026-208-2G1B-RH
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFH-6026-208-2G1B-RH

  • winconn

Product Description

Product Name: 1.27mm with post vertical SMT/SMD Female Header connector for Home Security

P/N: WFH-6026-208-2G1B-RH


Description: The 1.27mm with post vertical SMT/SMD Female Header connector is specifically designed for Home Security applications. This connector offers reliable and secure connections for your PCB projects. With a vertical orientation, it saves space and provides a neat layout for your circuit boards. The SMT/SMD design ensures easy installation and soldering onto the PCB. The 1.27mm pitch allows for precise connections, making it ideal for high-density applications. Trust in the quality and durability of this Female Header connector to enhance the performance and longevity of your Home Security systems.


NOTE:
1. MATERIAL:
  HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
                    UL 94V-0, COLOR:BLACK.
  CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
  CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
  CONTACT RESISTANCE: 20mΩ Max.
   INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C
  COMPLIANCE: RoHS or HF

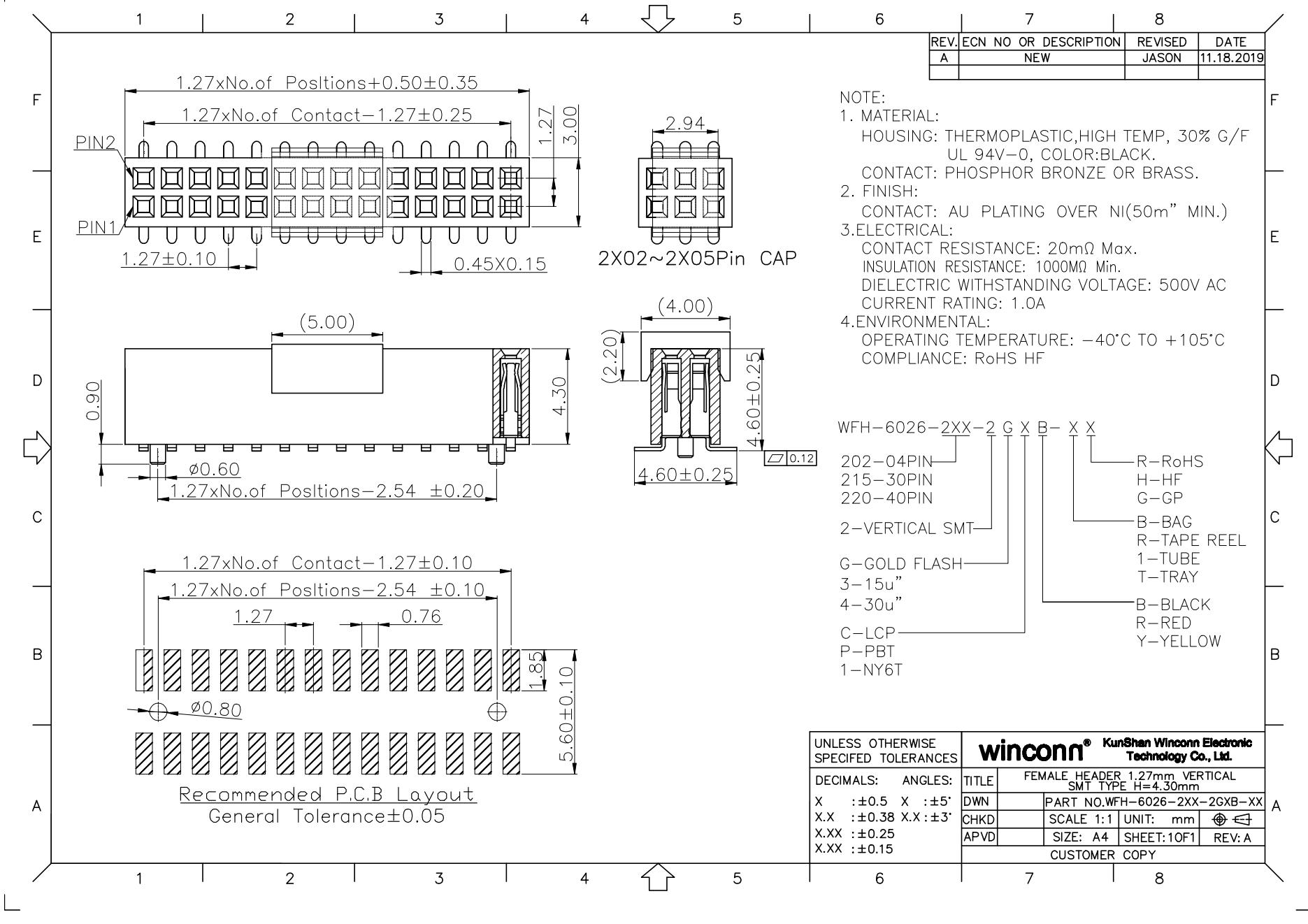

WFH-6026-2XX-2GXB-XR_00

2D Drawing
