WFH-6026-205-2G1B-RR
winconn

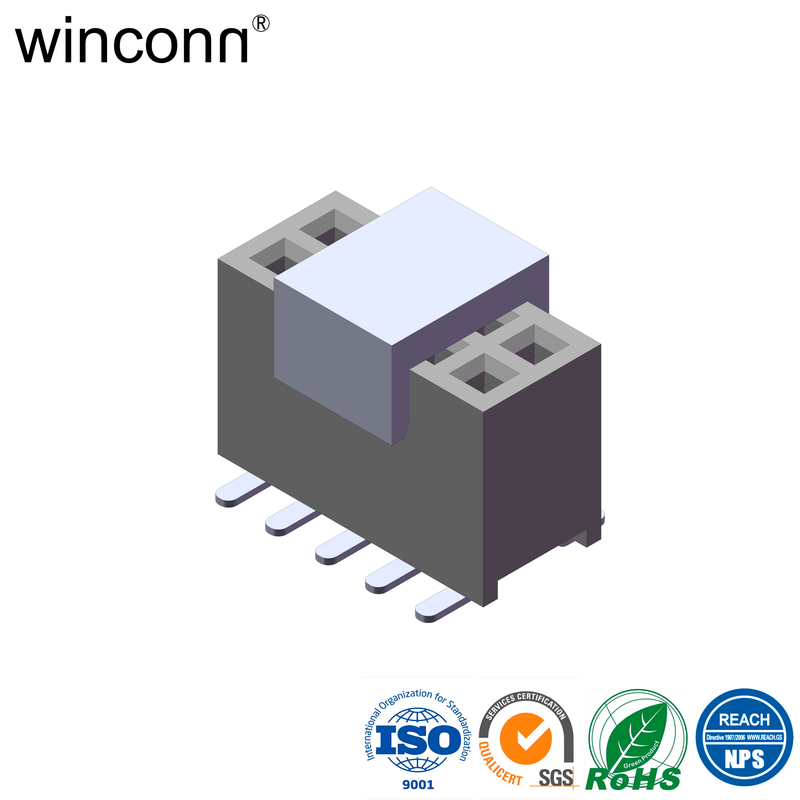

1.27mm vertical smt with post for mother board female header terminal socket connector
P/N: WFH-6026-205-2G1B-RR
Description: The 1.27mm with post vertical SMT/SMD Female Header connector is specifically designed for mother board. This connector offers reliable and secure connections for your PCB projects. With a vertical orientation, it saves space and provides a neat layout for your circuit boards. The SMT/SMD design ensures easy installation and soldering onto the PCB. The 1.27mm pitch allows for precise connections, making it ideal for high-density applications. Trust in the quality and durability of this Female Header connector to enhance the performance and longevity of your mother board.
NOTE:
1. MATERIAL:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
UL 94V-0, COLOR:BLACK.
CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
CONTACT RESISTANCE: 20mΩ Max.
INSULATION RESISTANCE: 1000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
COMPLIANCE: RoHS or HF
