WPH-6D11-205-2G1B-RR
winconn

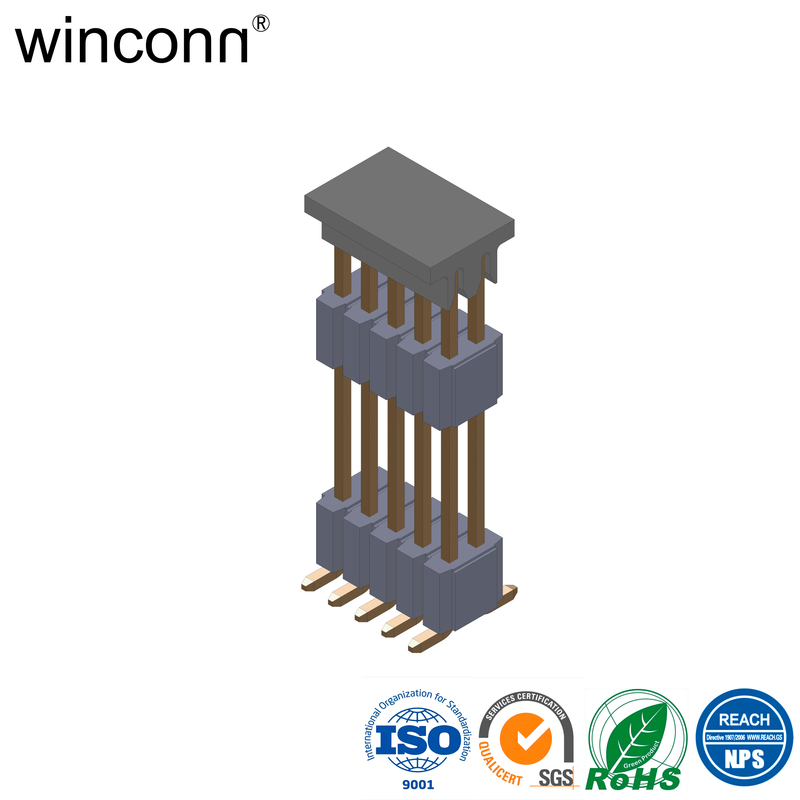

1.27mm vertical SMT 2X5P double housing Pin Header terminal socket connector

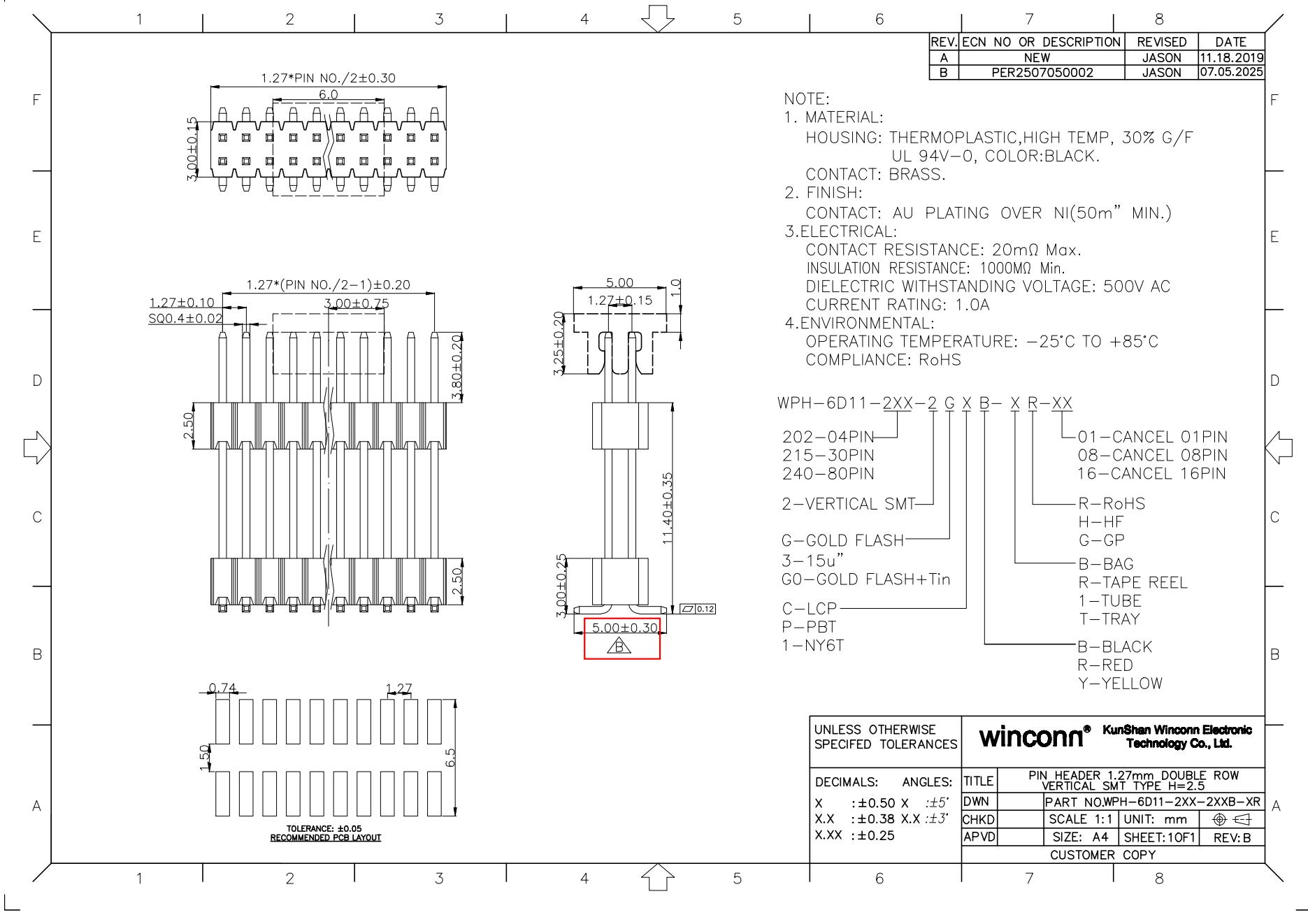

P/N: WPH-6D11-205-2G1B-RR
1. MATERIAL:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
UL 94V-0, COLOR:BLACK.
CONTACT: BRASS.
2. FINISH:
CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
CONTACT RESISTANCE: 20mΩ Max.
INSULATION RESISTANCE: 1000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
COMPLIANCE: RoHS or HF
