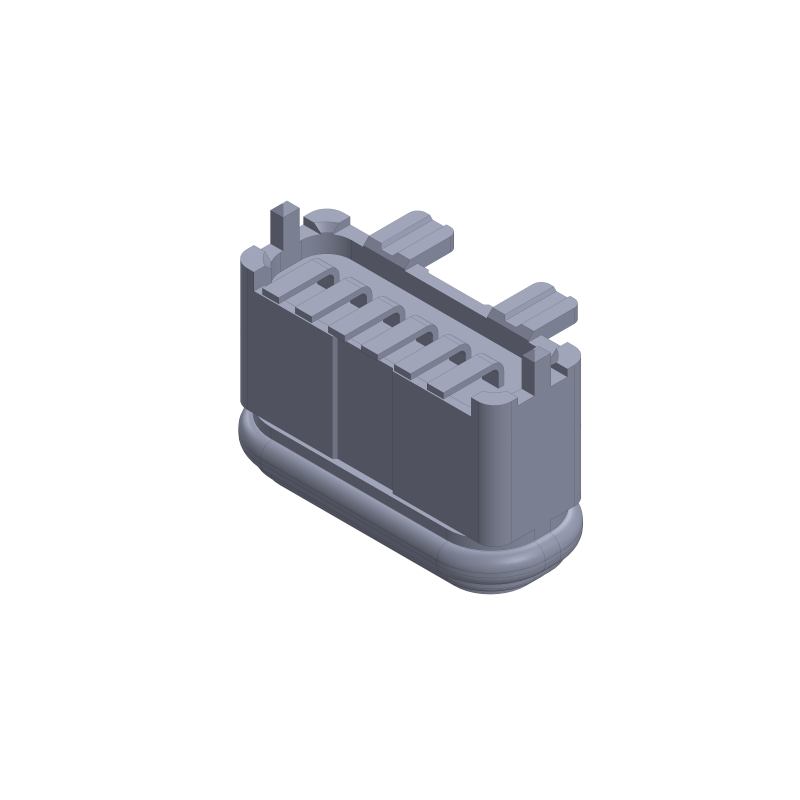

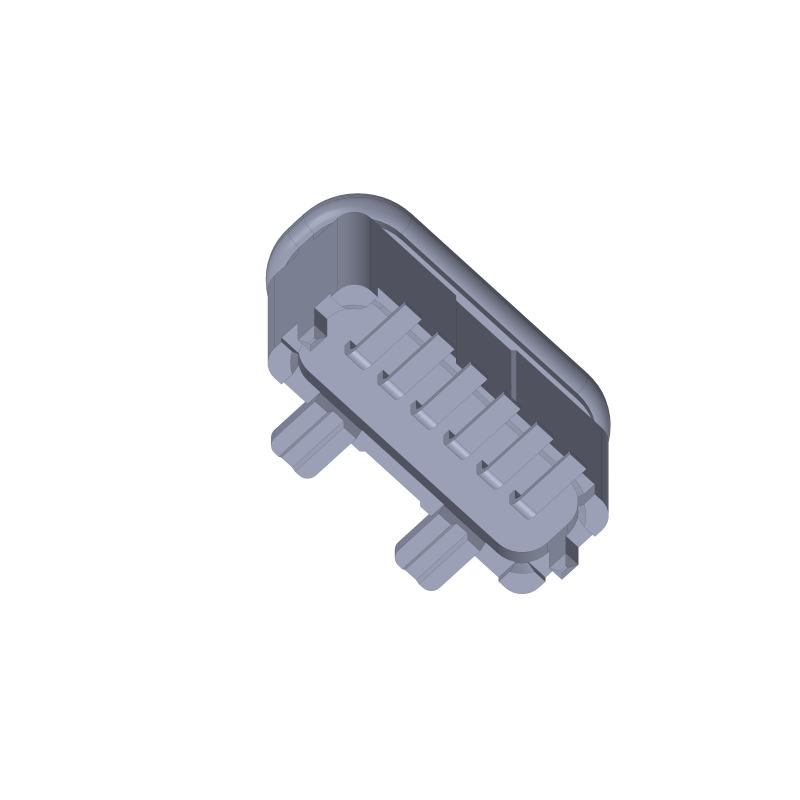

USB Type C Waterproof

USB C Type Vertical SMT

UC-8001-2GNB-RR

SPECIFICATIONS:

1. ELECTRICAL CHARACTERISTICS:

 1.1. RATING: 3A;

 1.2. CONTACT RESISTANCE: 30 mΩ MAX.(INITIAL);

 1.3. DIELECTRIC WITHSTANDING: 100V AC MIN.;

 1.4. INSULATION RESISTANCE: 100MΩ MIN.;

2. DURABILITY: 5,000 CYCLES MIN.;

3. INSERTION FORCE: 5-20N;

4. EXTRACTION FORCE: 8-20N;

5. WATER PROOFNESS:THIS PRODUCT IS BASED ON IPX7.

6. PLUG INTERFACE DIMENSIONS COMFORM TO USB2.0 SPEC.

7. PACKAGING: TAPE & REEL.

8. ENVIRONMENTAL :

8.1 OPERATING TEMPERATURE:-25°C TO +85°C

9.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.
