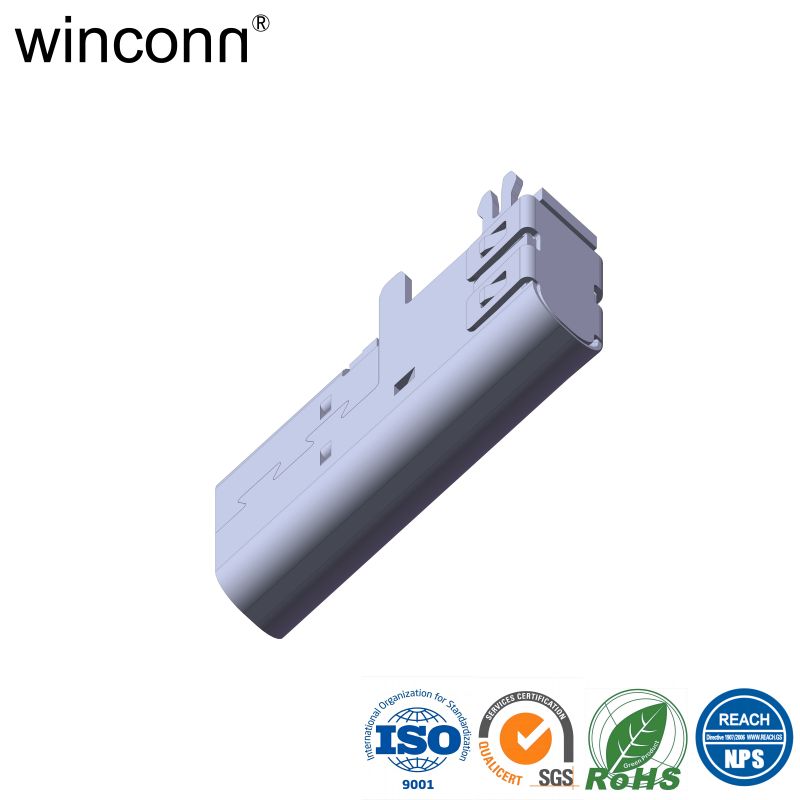

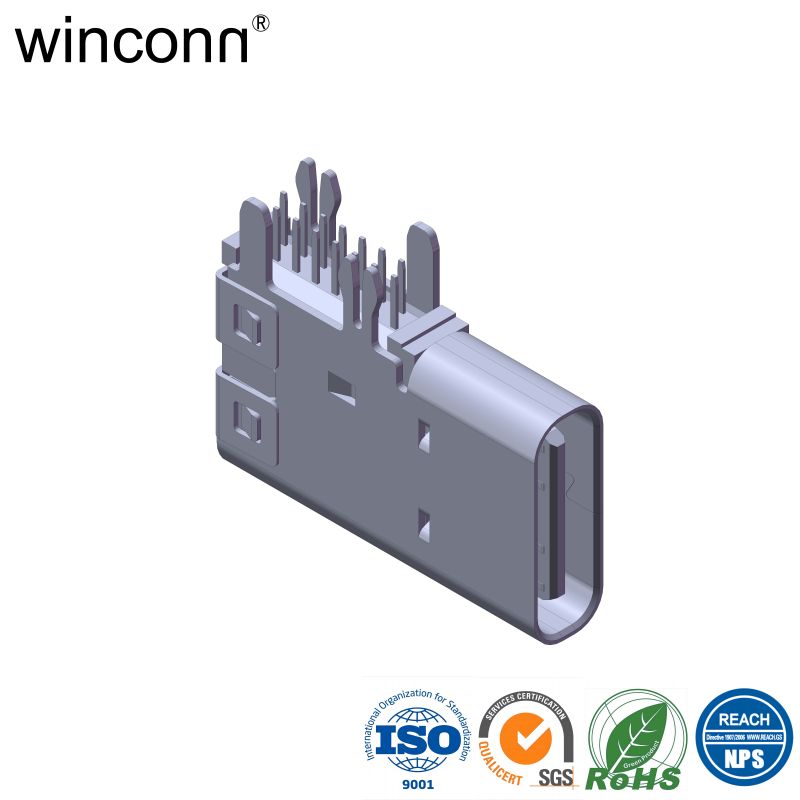

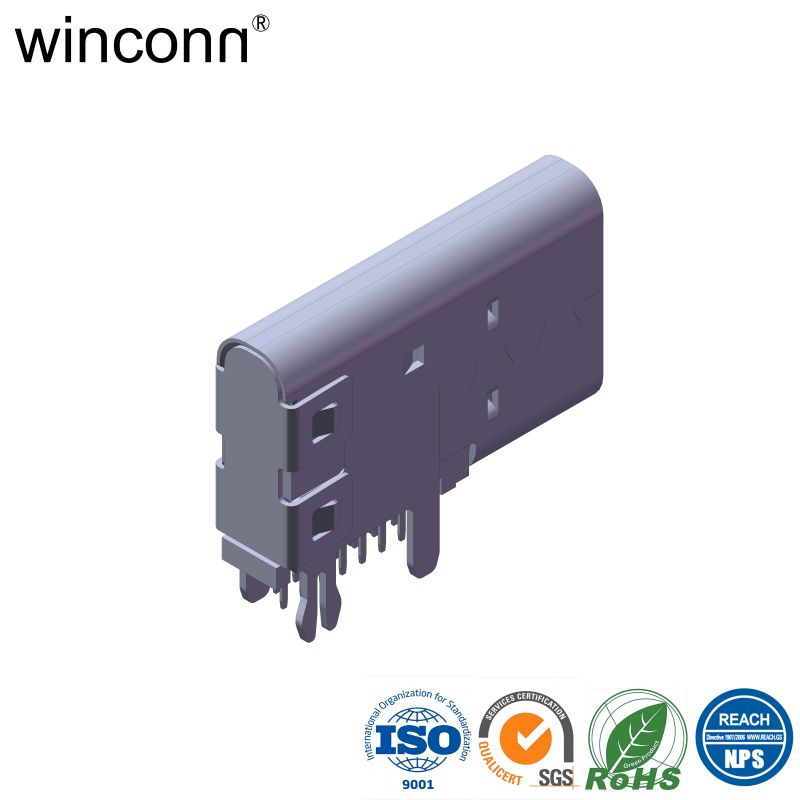

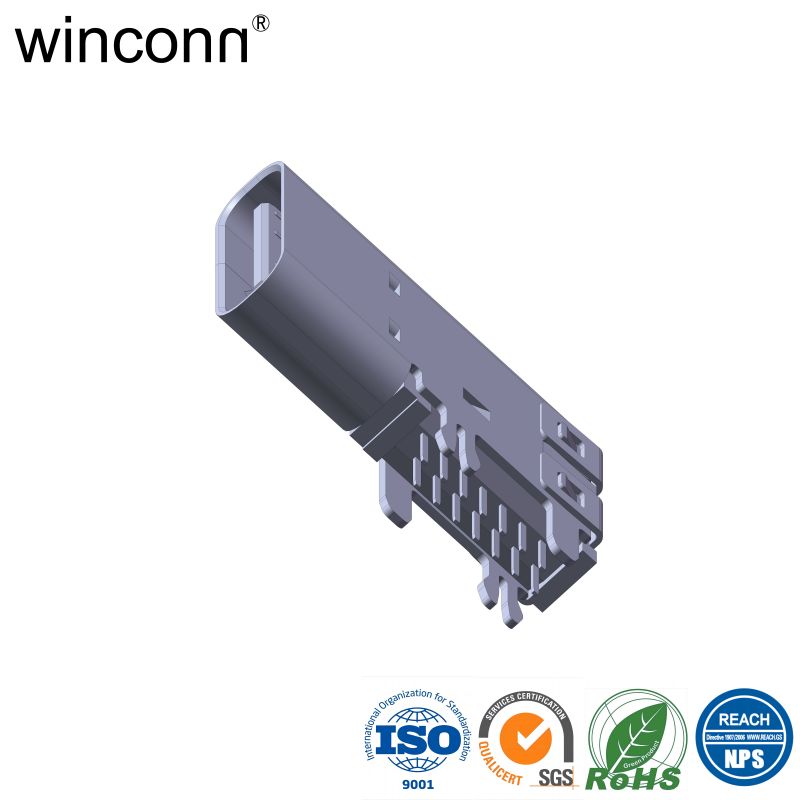

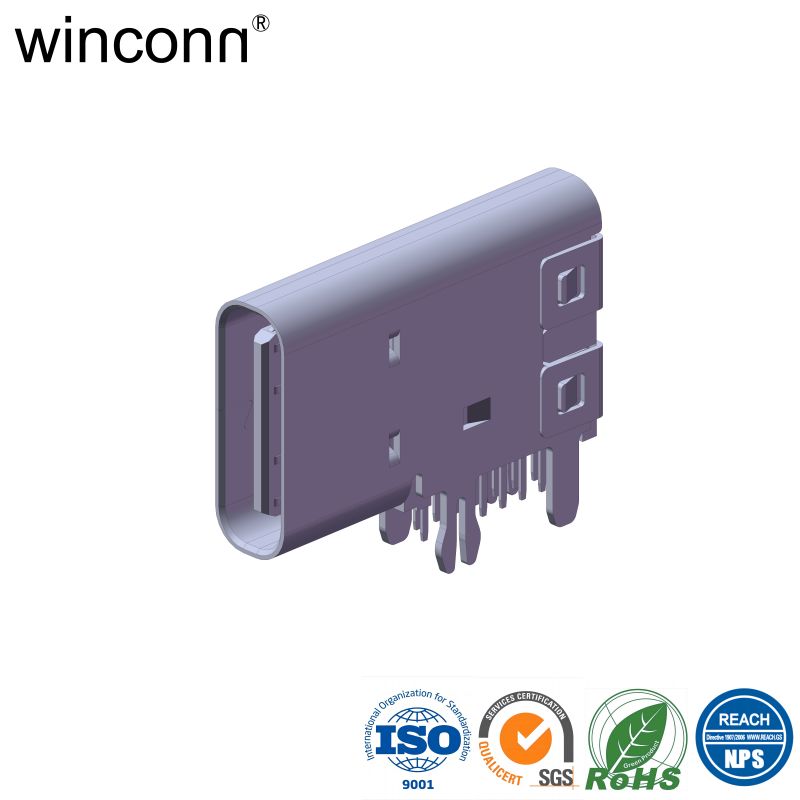

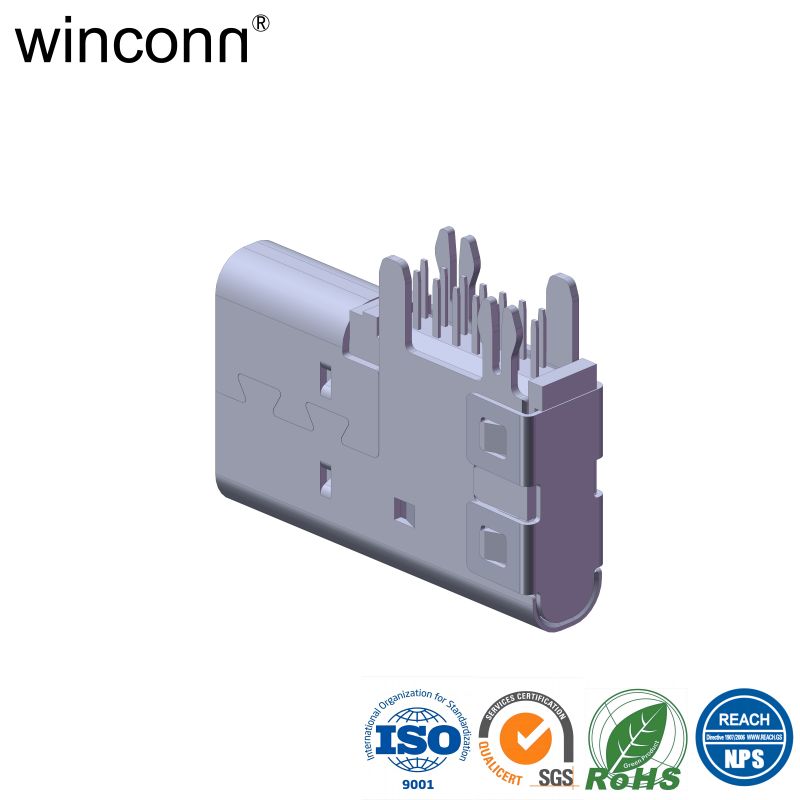

horizontal surface mount Air purification systems USB 3.2 terminal

horizontal surface mount Air purification systems USB 3.2 terminal,surface mount Air purification systems horizontal USB 3.2 terminal,mount Air purification systems horizontal surface USB 3.2 terminal,Air purification systems horizontal surface mount USB 3.2 terminal,purification systems horizontal surface mount Air USB 3.2 terminal
Availability:
  • UC-3012-3GNB-TR

  • winconn

Product Description

SPECIFICATIONS:

1.MECHANICAL :

1.1 INSERTION FORCE :5N~20N

1.2 WITHDRAWAL FORCE :8N~20N

AFTER 10,000 CYCLES MATING: 6N~20N.


2.ELECTRICAL:

2.1 APPLIED CURRENT (REQUIREMENT)

2.1.1 VBUS PIN: 5A

2.1.2 GND PIN: 6.25A

2.1.3 VCONN PIN: 1.25A

2.1.4 OTHER PINS: 0.25A

2.3 WITHSTANDING VOLTAGE: 100 VAC FOR 1 MINUTE.

2.4 INSULATION RESISTANCE: 100 MEGAOHMS MIN.

2.5 CONTACT RESISTANCE: 40 MILLIOHMS MAX.


3. ENVIRONMENTAL :

3.1 OPERATING TEMPERATURE:-25°C TO +85°C


4.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.


UC-3012-3GNB-TR_00

UC-3012-3GNB-TR_01
