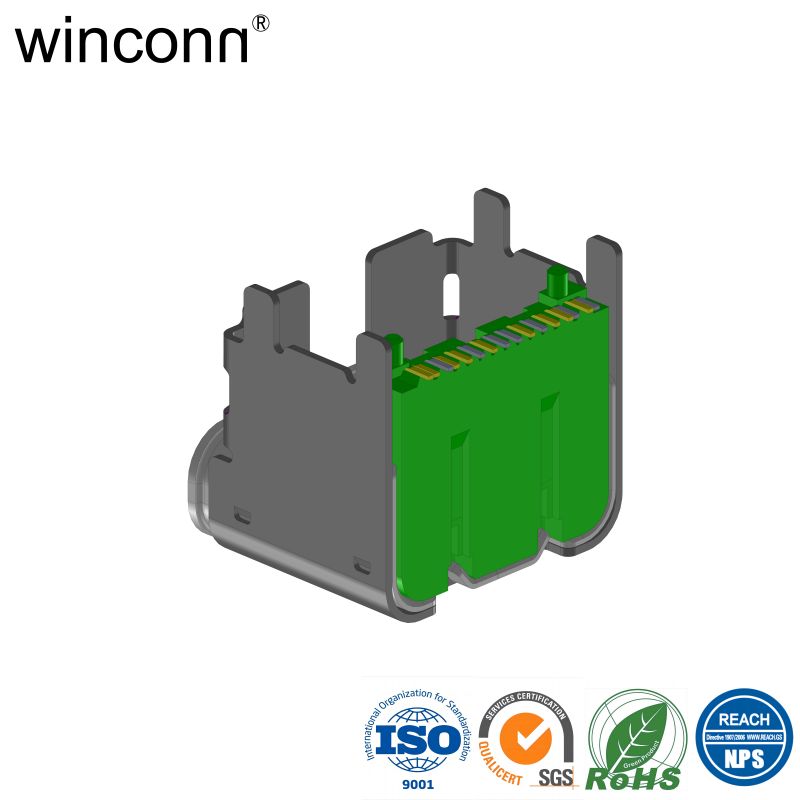

Horizontal Identity door-locking systems USB Type C socket

SPECIFICATIONS:

1.MECHANICAL :

1.1 INSERTION FORCE :5N~20N

1.2 WITHDRAWAL FORCE :8N~20N

AFTER 10,000 CYCLES MATING: 6N~20N.

2.ELECTRICAL:

2.1 APPLIED CURRENT (REQUIREMENT)

2.1.1 VBUS PIN: 5A

2.1.2 GND PIN: 6.25A

2.1.3 VCONN PIN: 1.25A

2.1.4 OTHER PINS: 0.25A

2.3 WITHSTANDING VOLTAGE: 100 VAC FOR 1 MINUTE.

2.4 INSULATION RESISTANCE: 100 MEGAOHMS MIN.

2.5 CONTACT RESISTANCE: 40 MILLIOHMS MAX.

3. ENVIRONMENTAL :

3.1 OPERATING TEMPERATURE:-25°C TO +85°C

4.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.
