FEMALE HEADER 0.0787inch

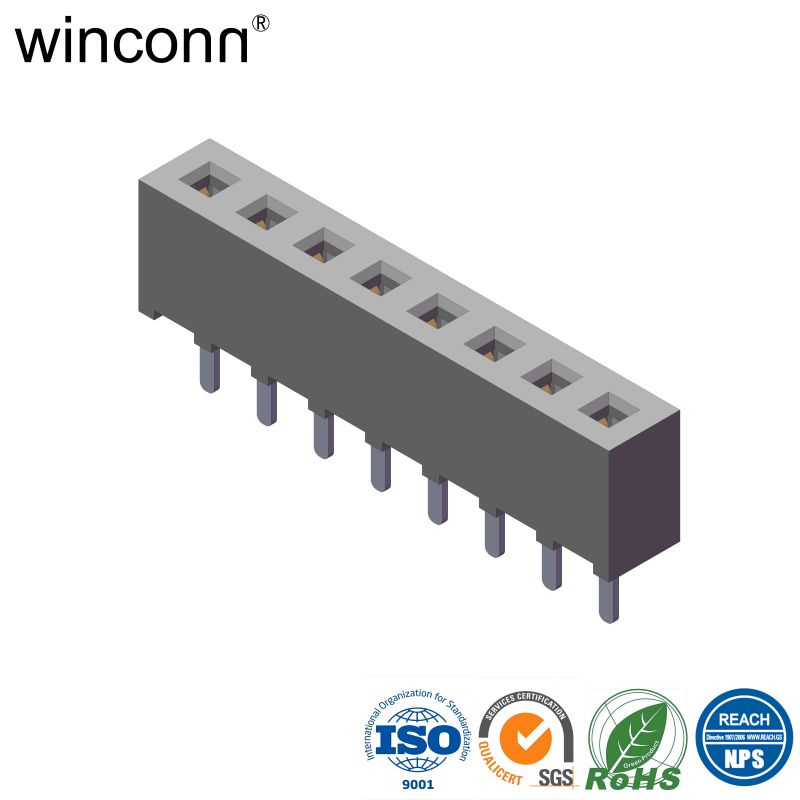

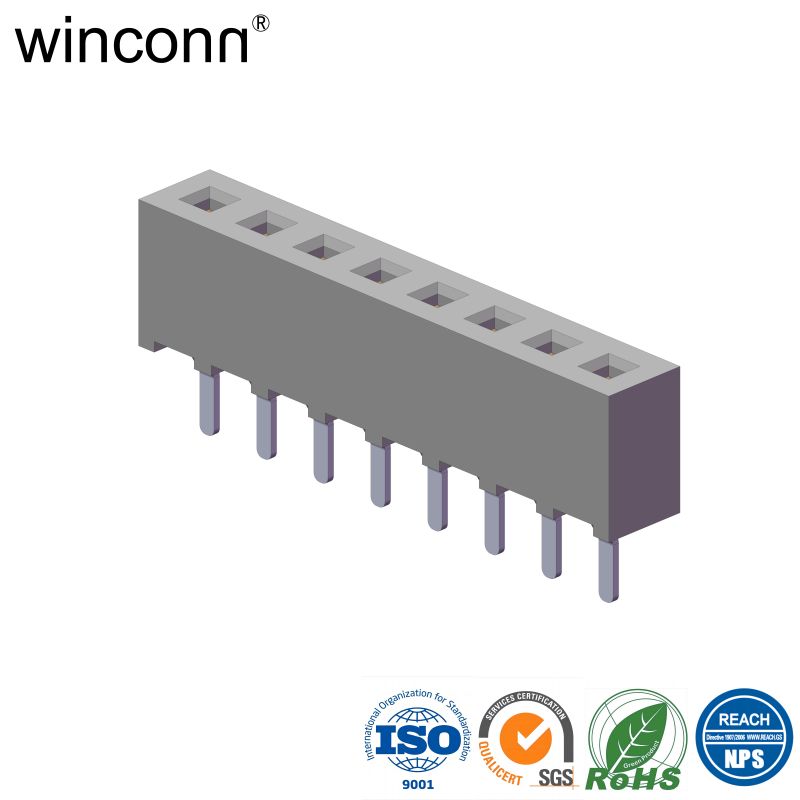

FEMALE HEADER 2.00mm SINGLE ROW STRAIGHT DIP TYPE H=4.0mm

P/N: WFH-7X01-1XX-4GXB-XR

FEMALE HEADER 0.0787inch(2.0mm)

FEMALE HEADER 0.0787"(2.0mm)

FEMALE HEADER 0.1inch(2.54mm)

FEMALE HEADER 0.1"(2.54mm)

FEMALE HEADER 0.05inch(1.27mm)

FEMALE HEADER 0.05"(1.27mm)

1. MATERIAL:
     HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
                  UL 94V-0, COLOR:BLACK.
     CONTACT: PHOSPHOR BRONZE OR BRASS.
   2. FINISH:
     CONTACT: AU PLATING OVER NI(50m" MIN.)
   3.ELECTRICAL:
     CONTACT RESISTANCE: 20mΩ Max.
      INSULATION RESISTANCE: 1000MΩ Min.
     DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
     CURRENT RATING: 1.5A
   4.ENVIRONMENTAL:
     OPERATING TEMPERATURE: -25°C TO +85°C
     COMPLIANCE: RoHS
