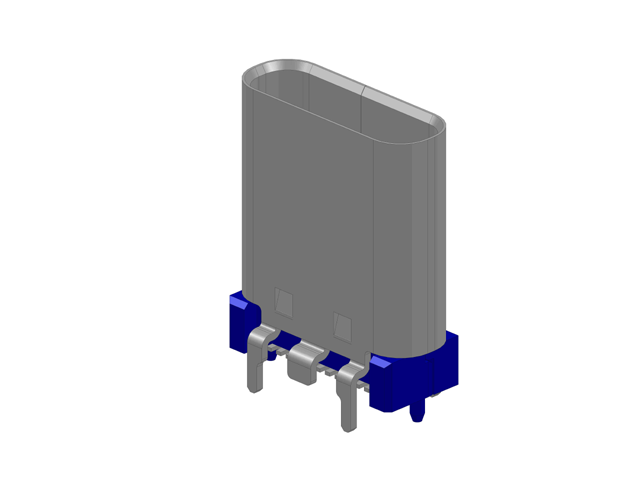

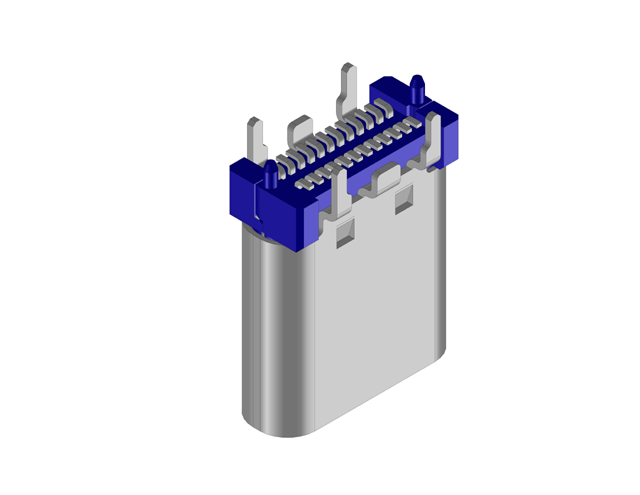

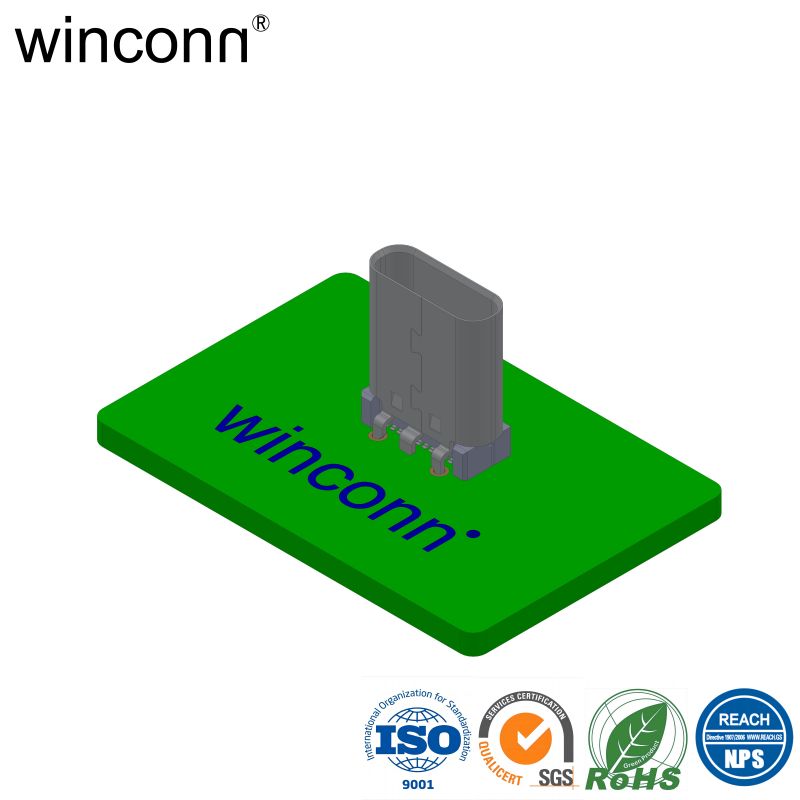

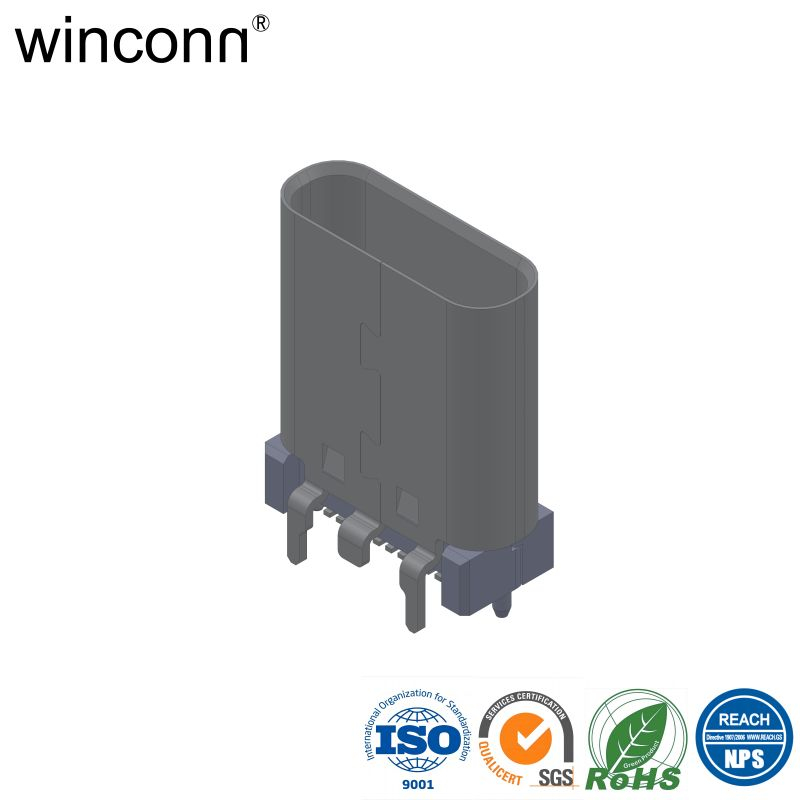

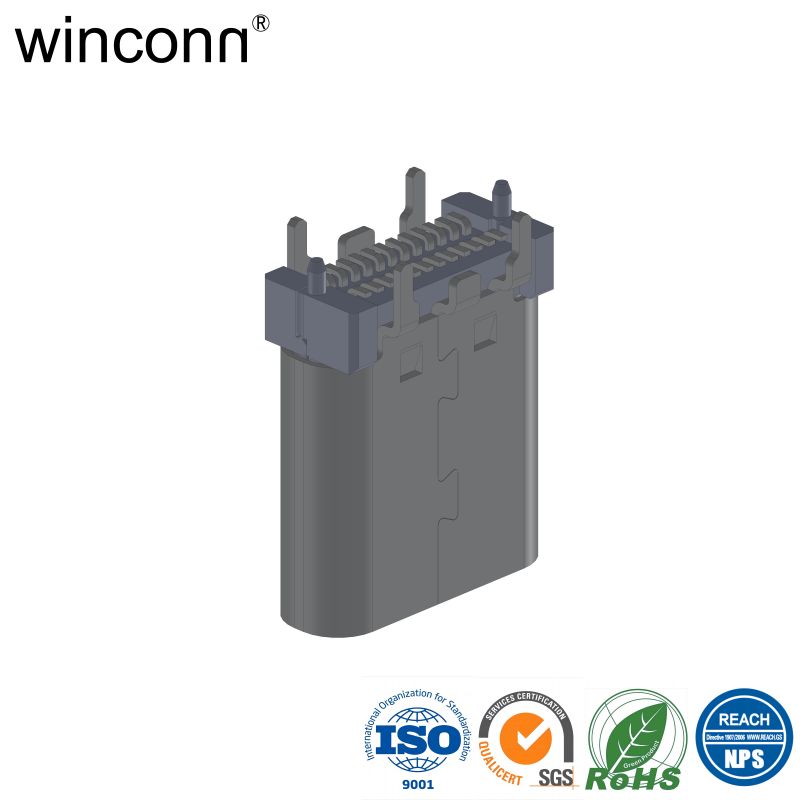

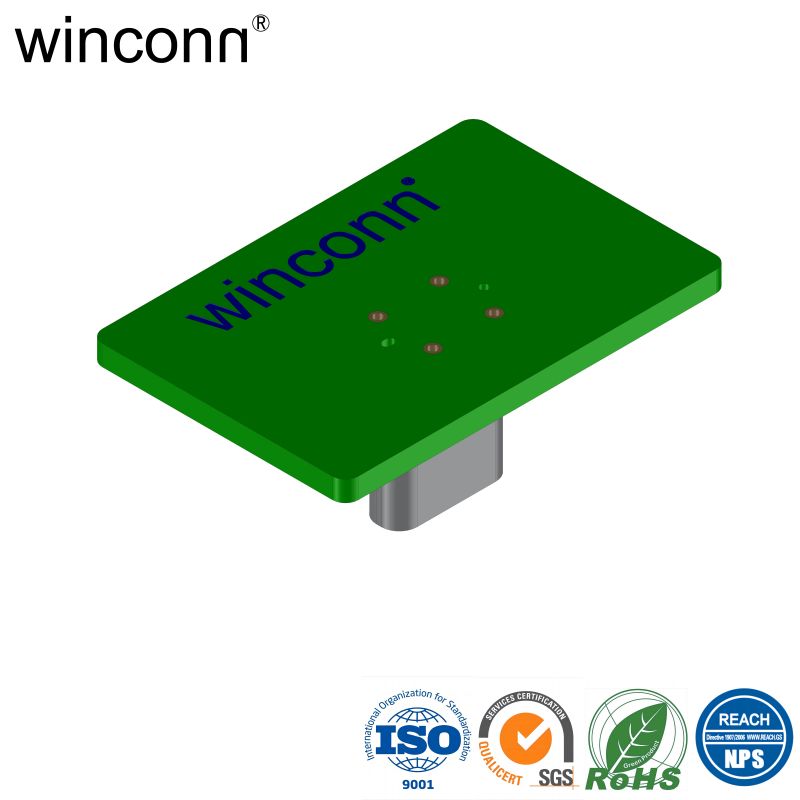

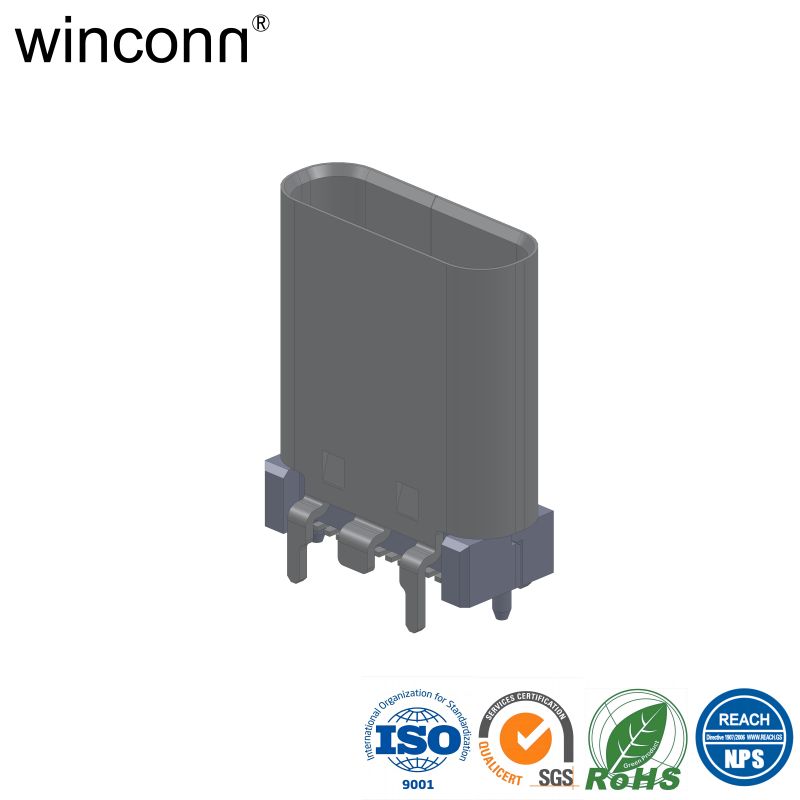

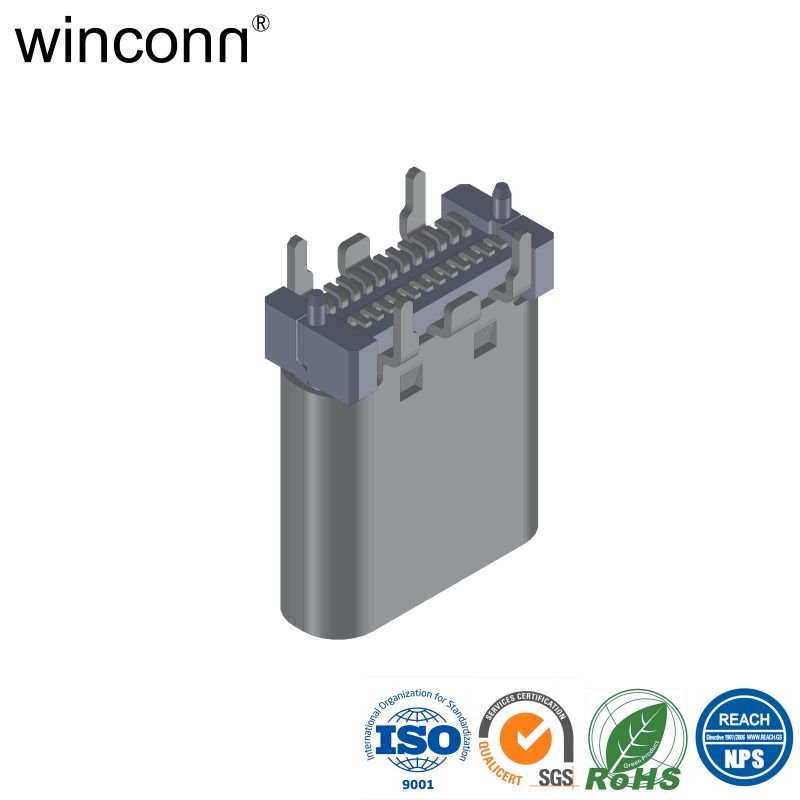

Low Frequency Stainless Steel 0.078"(2.00mm) USB 3.1 connector

Low Frequency Stainless Steel 0.078"(2.00mm) USB 3.1 connector,Stainless Steel 0.078"(2.00mm) Low Frequency USB 3.1 connector,0.078"(2.00mm) Low Frequency Stainless Steel USB 3.1 connector,Low Frequency 0.078"(2.00mm) Stainless Steel USB 3.1 connector,connector Low Frequency 0.078"(2.00mm) Stainless Steel USB 3.1
Availability:
  • UC-3018-2GNB-RR

  • winconn

Product Description

SPECIFICATIONS:

1.MECHANICAL :

1.1 INSERTION FORCE :5N~20N

1.2 WITHDRAWAL FORCE :8N~20N

AFTER 10,000 CYCLES MATING: 6N~20N.


2.ELECTRICAL:

2.1 APPLIED CURRENT (REQUIREMENT)

2.1.1 VBUS PIN: 5A

2.1.2 GND PIN: 6.25A

2.1.3 VCONN PIN: 1.25A

2.1.4 OTHER PINS: 0.25A

2.3 WITHSTANDING VOLTAGE: 100 VAC FOR 1 MINUTE.

2.4 INSULATION RESISTANCE: 100 MEGAOHMS MIN.

2.5 CONTACT RESISTANCE: 40 MILLIOHMS MAX.


3. ENVIRONMENTAL :

3.1 OPERATING TEMPERATURE:-25°C TO +85°C


4.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.


UC-3018-2GNB-RR_00
