Vertical DIP Consumer Box Header terminal

P/N: WBH-7801-2XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WBH-7801-2XX-4GXB-XR

  • winconn

Product Description

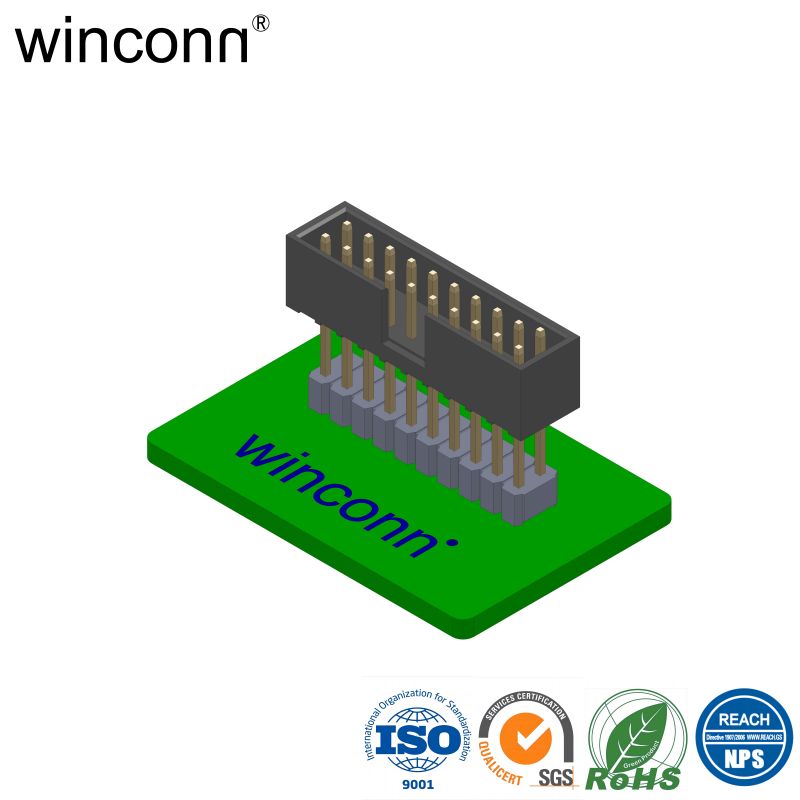

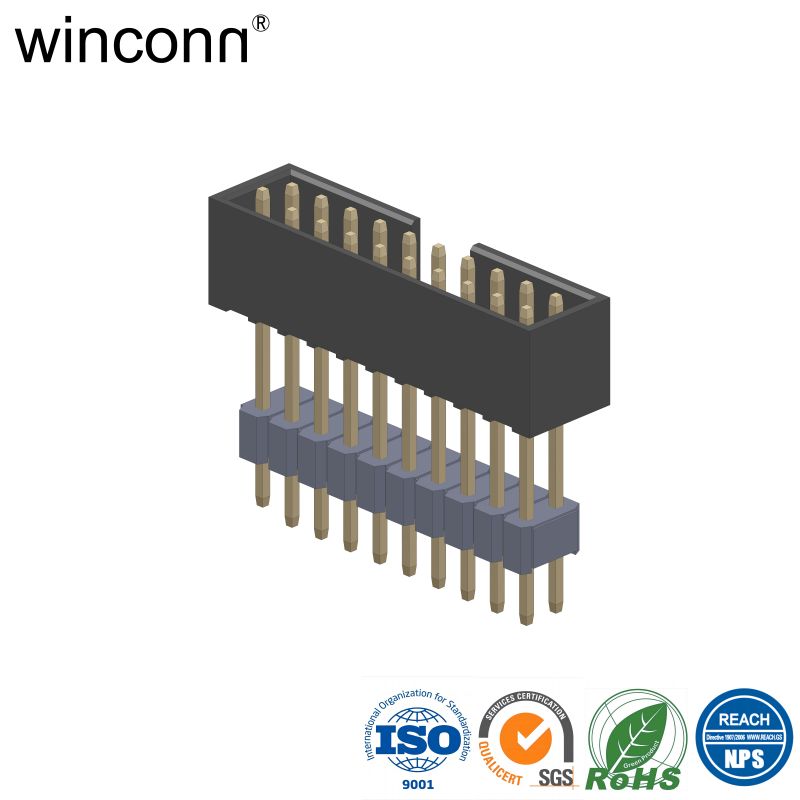

Box Header+Pin Header Pitch 2.00mm Vertical DIP Type

P/N: WBH-7801-2XX-4GXB-XR


NOTE:

1.MATERIAL:

 HOUSING:HIGH TEMPERATURE THERMOPLASTIC UL94V-0

 CONTACT:COPPER ALLOY.


2.PLATING:

 CONTACT:GOLD PLATED OVER Ni


3.ELECTRICAL:

CONTACT RESISTANCE:20 MILLIOHMS

INSULATION RESISTANCE:1000 MEGOHMS

DIELECTRIC WITHSTANDING VOLTAGE:100 AC

CURRENT RATING:2.0A

VOLTAGE RATING:125V AC/DC


4.ENVIRONMENTAL:

OPERATING TEMPERATURE:-45℃ TO+105℃


WBH-7801-2XX-4GXB-XR_00
