WBH-7008-2XX-4GXB-XR
winconn

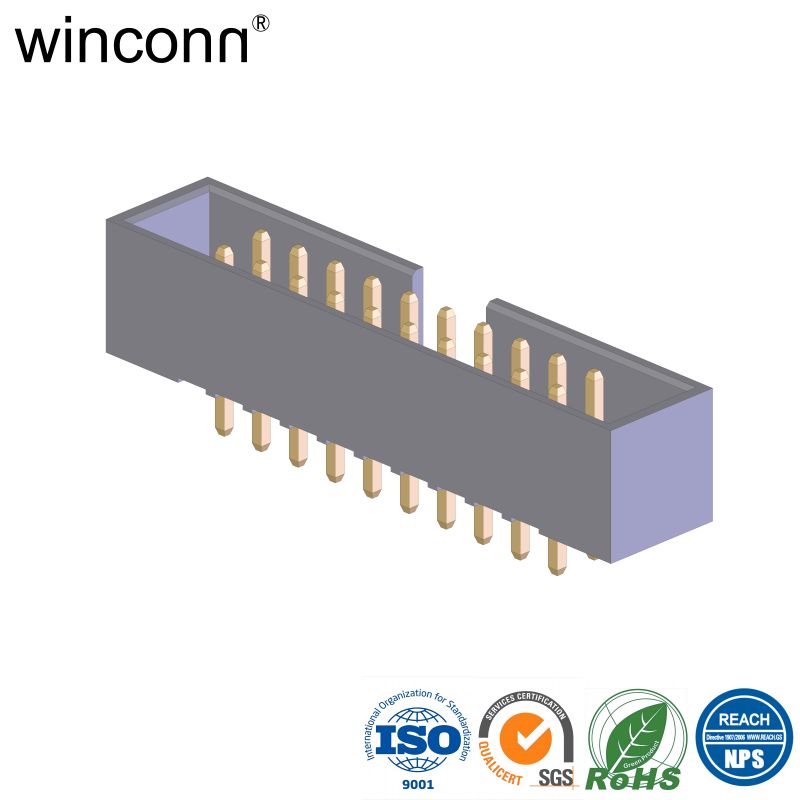

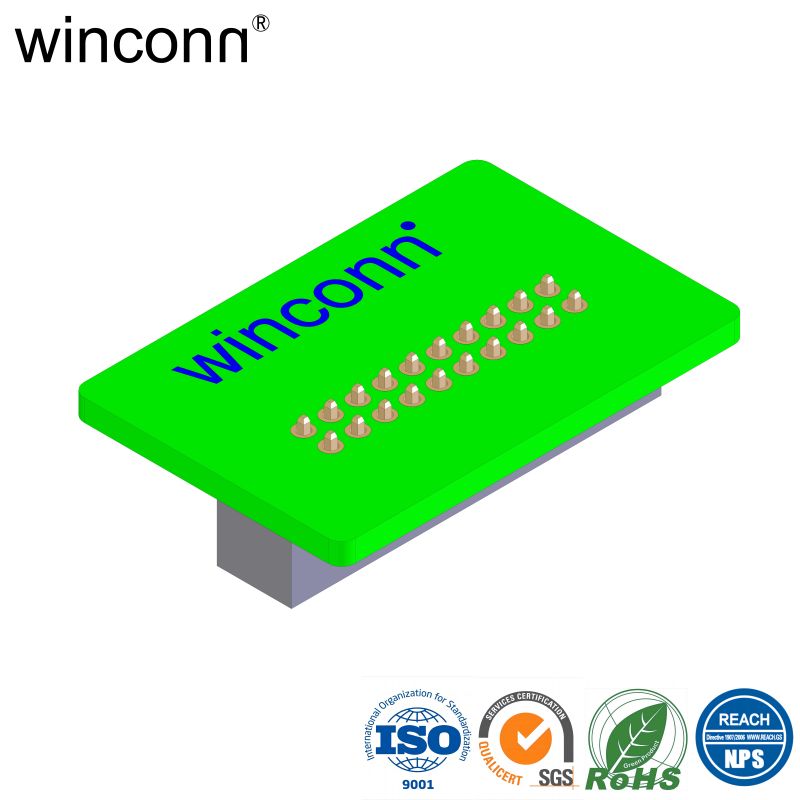

Box Header Pitch 2.00mm Straight DIP Type
P/N: WBH-7008-2XX-4GXB-XR
NOTE:
1.MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC UL94V-0
CONTACT:COPPER ALLOY.
2.PLATING:
CONTACT:GOLD PLATED OVER Ni
3.ELECTRICAL:
CONTACT RESISTANCE:20 MILLIOHMS
INSULATION RESISTANCE:1000 MEGOHMS
DIELECTRIC WITHSTANDING VOLTAGE:100 AC
CURRENT RATING:2.0A
VOLTAGE RATING:125V AC/DC
4.ENVIRONMENTAL:
OPERATING TEMPERATURE:-45℃ TO+105℃
