smd ic socket terminal double row vertical SMT 1.27mm IC Socket connector

P/N: RPH-6001-2XX-2GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • RPH-6001-2XX-2GXB-XR

  • winconn

Product Description

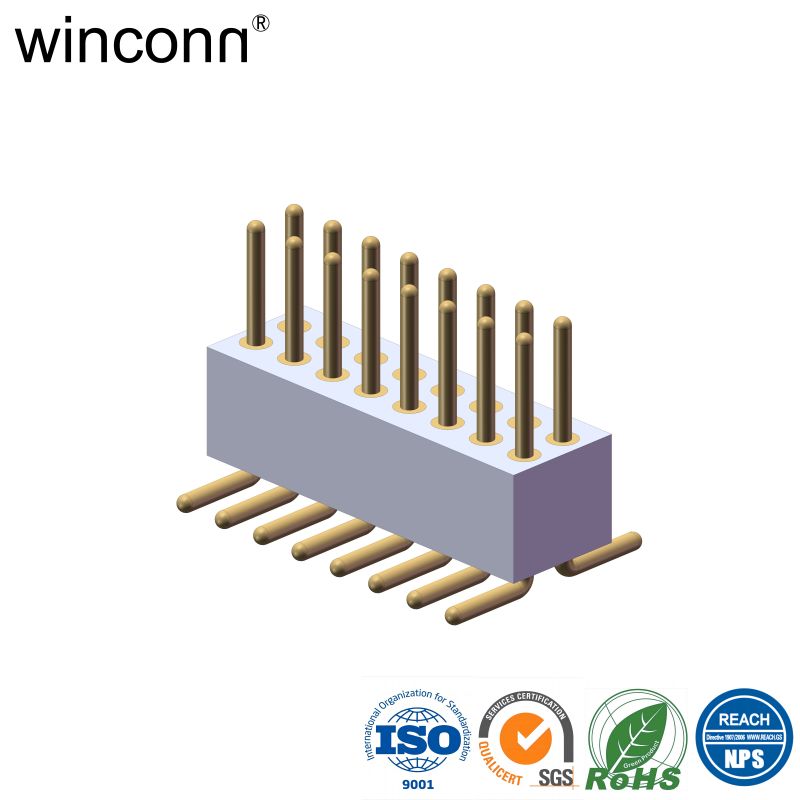

Male IC Socket 1.27mm Double Row Vertical sMT Type

P/N: RPH-6001-2XX-2GXB-XR


1.27mm Round pin header for BGA IC

Round male header 1.27mm

double row ic socket 1.27mm

1.27mm ic socket


Material:

Pin(outer sleeve): Brass,machined CuZn38Pb2

Plating: gold or Tin plated over the 2um/80u" nickel

Insulator black(housing): PPS. (UL94V-0)


Electrical:

Current rating: 3Amps/contact max.

Contact resistance: 4mΩ Max./contact

Insulation resistance: 1000MΩ Min. at V=100V

Operaing voltage: 60VAC/DC

Withstanding Voltage: 1000V AC/minute


Operaing temperatures: Gold Plated:-55°C to+105°C

Tin plated:-40°C to+105°C

Soldering temperature: +260°C,10s max


RPH-6001-2XX-2GXB-XR_00

2D Drawing
