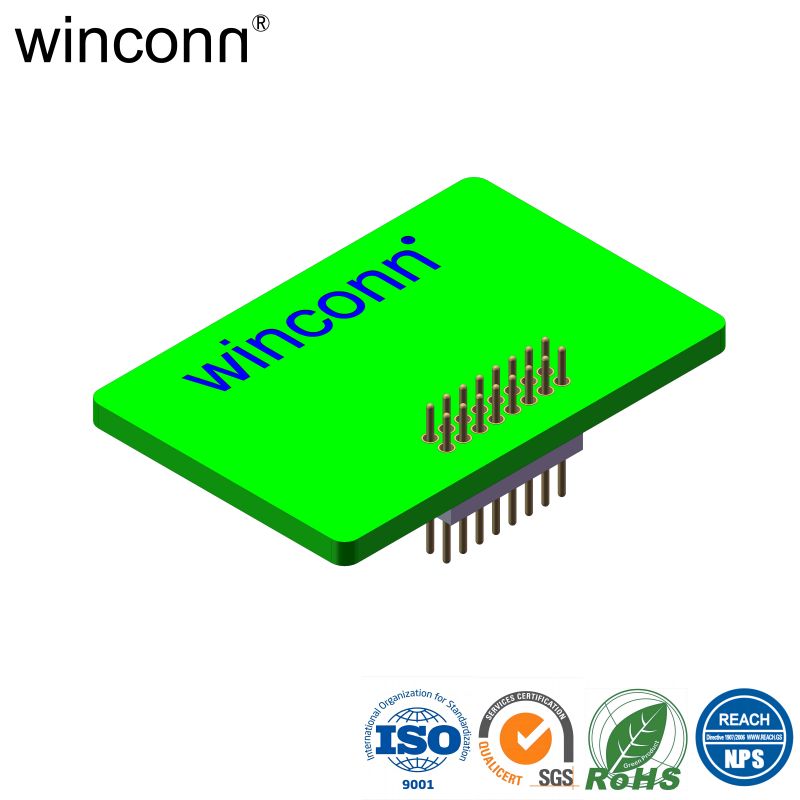

Male IC Socket 1.27mm Double Row Straight DIP Type

P/N: RPH-6001-2XX-4GXB-XR

Round pin header

Round male header

double row ic socket

2.0 ic socket

Material:

Pin(outer sleeve): Brass,machined CuZn38Pb2

Plating: gold or Tin plated over the 2um/80u" nickel

Insulator black(housing): PPS. (UL94V-0)

Electrical:

Current rating: 3Amps/contact max.

Contact resistance: 4mΩ Max./contact

Insulation resistance: 1000MΩ Min. at V=100V

Operaing voltage: 60VAC/DC

Withstanding Voltage: 1000V AC/minute

Operaing temperatures: Gold Plated:-55°C to+105°C

Tin plated:-40°C to+105°C

Soldering temperature: +260°C,10s max
