RFH-8001-1XX-2GXB-XR
winconn

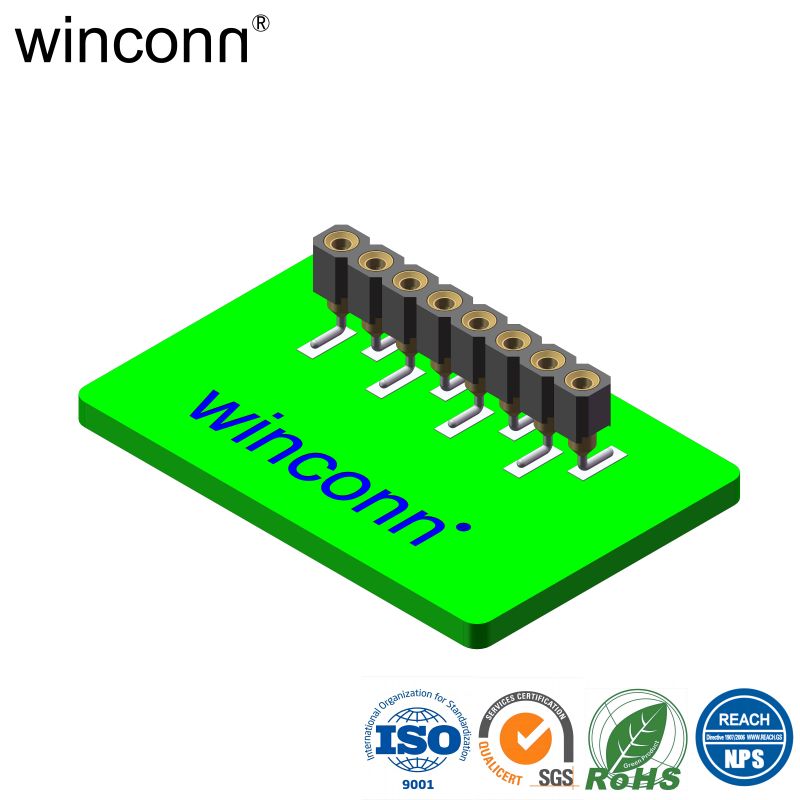

Female IC Socket 2.54mm Single Row Vertical SMT Type
P/N: RFH-8001-1XX-2GXB-XR
Material:
Pin(outer sleeve): Brass,machined CuZn38Pb2
Clip(contact 6 finger): Beryllium copper,heat treated
Plating: gold or Tin plated over the 2um/80u" nickel
Insulator black(housing): PPS. (UL94V-0)
Electrical:
Current rating: 3Amps/contact max.
Contact resistance: 4mΩ Max./contact
Insulation resistance: 1000MΩ Min. at V=100V
Operaing voltage: 60VAC/DC
Withstanding Voltage: 500V AC/minute
Mechanical:
Average insertion force with steel pin of
∅O.66mm/.O26": <250g
Average withdrawal force with steel pin of
∅O.66mm/.O26": >25g min.
Mechanical life cycle:min.200
Operaing temperatures: Gold Plated:-55°C to+125°C
Tin plated:-40°C to+105°C
Soldering temperature: +260°C,10s max
