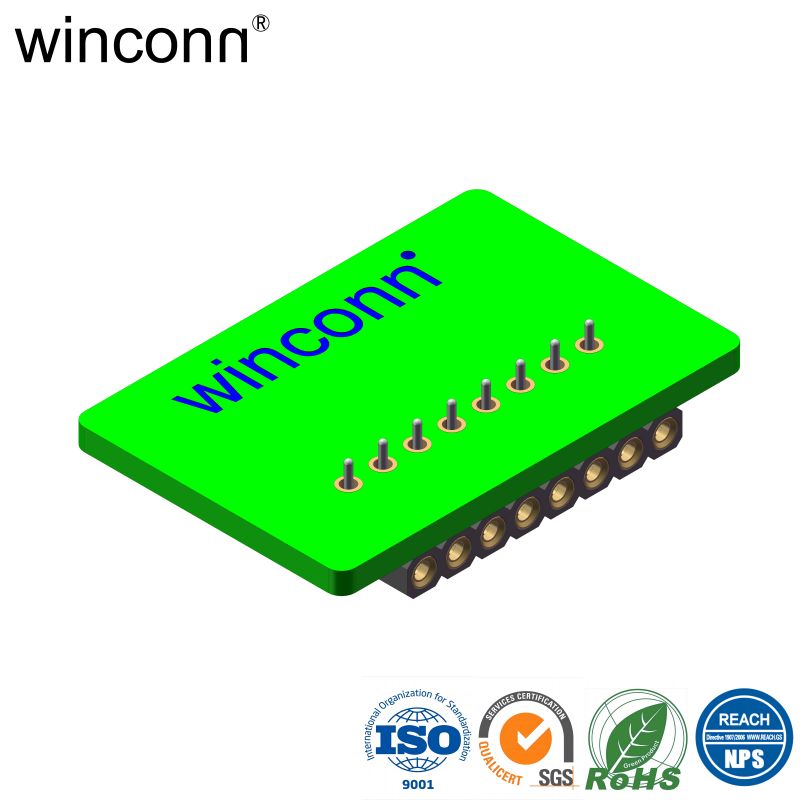

Female IC Socket 2.54mm Single Row Right Angle DIP Type H=3.00mm

P/N: RFH-8001-1XX-3GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • RFH-8001-1XX-3GXB-XR

  • winconn

Product Description

Female IC Socket 2.54mm Single Row Right Angle DIP Type

P/N: RFH-8001-1XX-3GXB-XR


Material:

Pin(outer sleeve): Brass,machined CuZn38Pb2

Clip(contact 6 finger): Beryllium copper,heat treated

Plating: gold or Tin plated over the 2um/80u" nickel

Insulator black(housing): PPS. (UL94V-0)


Electrical:

Current rating: 3Amps/contact max.

Contact resistance: 4mΩ Max./contact

Insulation resistance: 1000MΩ Min. at V=100V

Operaing voltage: 60VAC/DC

Withstanding Voltage: 500V AC/minute


Mechanical:

Average insertion force with steel pin of

∅O.66mm/.O26": <250g

Average withdrawal force with steel pin of

∅O.66mm/.O26": >25g min.

Mechanical life cycle:min.200

Operaing temperatures: Gold Plated:-55°C to+125°C

Tin plated:-40°C to+105°C

Soldering temperature: +260°C,10s max


RFH-8001-1XX-3X5B-XR_00

2D Drawing
