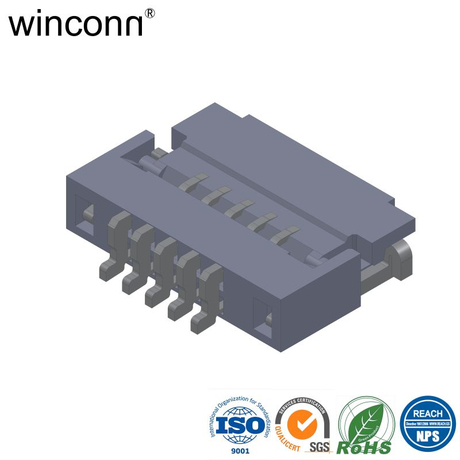

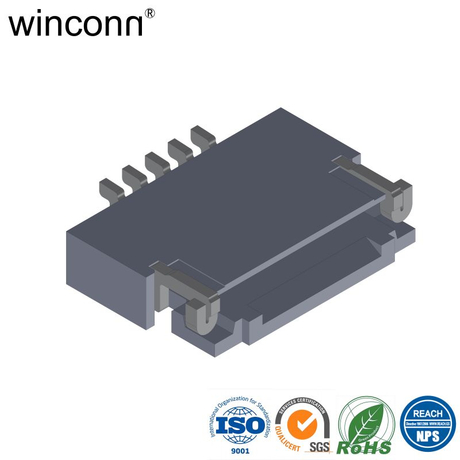

horizontal surface mount Brass 0.039"(1.0mm) FFC connector

FPC 0.50mm H1.00 Non Zif Right Angle SMT Type

P/N: WFP280H-0XXX100P

Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.

2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.

3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.

4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C
